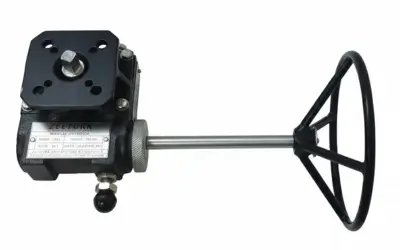

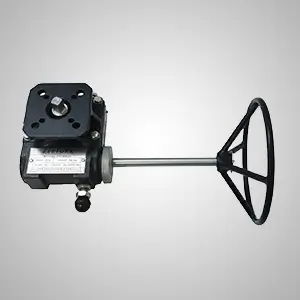

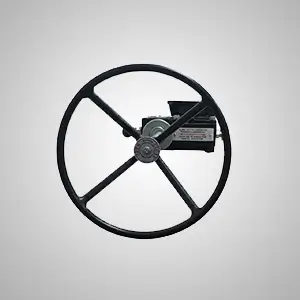

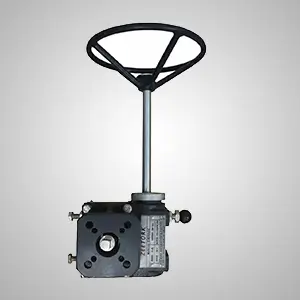

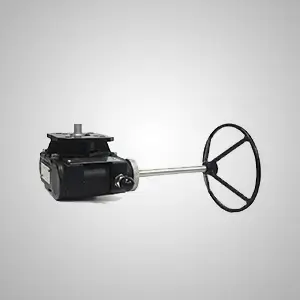

ZMOR Series

The Zeetork Z-MOR Series consists of robust, high-performance manual override gear operators for pneumatically actuated valves. Designed for maintenance, commissioning, and emergency use, they offer smooth, reliable manual control. With torque outputs from 250 Nm up to 5000 Nm, these compact devices feature cast iron housings, high-performance axial bearings, and powder-coated handwheels. The clutch-declutch mechanism allows seamless switching between manual and pneumatic control, making them ideal for industrial applications requiring reliable manual operation.

Z-MOR Series operators provide up to 5000 Nm torque and smooth operation via a clutch-declutch mechanism. They offer adjustable stroke (0°–90°, ±5°), and multiple housing options including ductile iron, carbon steel, and stainless steel. IP54 (optional IP65) enclosures ensure durability in harsh environments. Compact design, stainless steel handwheels, and high-performance axial bearings enable efficient manual control. ISO 5211 compatibility allows easy mounting with Zeetork pneumatic actuators and other global valve types.

The Z-MOR Series is ideal when manual intervention is needed for pneumatically actuated valves during maintenance, commissioning, or emergencies. Its clutch-declutch system enables smooth transition between automatic and manual operation without affecting system performance. With high torque capacity (up to 5000 Nm), corrosion-resistant construction, and compact design, it supports reliability in demanding environments. Adjustable stroke and standard ISO 5211 mounting ensure easy integration and precise manual control across industrial applications.

The Z-MOR Series is engineered for long-term durability. It uses a cast iron housing with epoxy primer coating and offers optional stainless steel components for enhanced corrosion resistance. High-performance axial bearings reduce friction, ensuring smooth torque transfer. The worm wheel is aluminum bronze, offering strength and wear resistance. Grease-filled lubrication (NLGI-2) ensures maintenance-free operation. IP54 (IP65 optional) enclosures protect against dust and water, making the Z-MOR reliable in harsh industrial environments.

Z-MOR operators are ISO 5211 compliant, allowing seamless mounting with Zeetork pneumatic actuators and global valve brands. With mechanical advantage ratios from 38:1 to 264:1 and adjustable stroke (0°–90°, ±5°), they suit a wide range of valve types and sizes. Manual control becomes effortless, even in high-torque applications. Its modular, compact design simplifies installation, while the robust clutch-declutch mechanism enables efficient switching between manual and automated operation for flexible industrial process control.
