ZRG Series

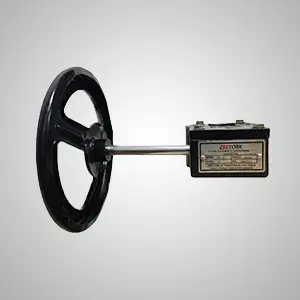

The ZRG Series by Zeetork are durable worm gear operators designed for manual and electric automation of quarter-turn valves, such as butterfly, ball, plug valves, and dampers. With torque outputs ranging from 250 Nm to 100,000 Nm, they deliver reliable, high-torque performance. Built from rugged cast iron with corrosion-resistant coatings and alloy steel shafts, ZRG operators are designed for long-lasting operation in harsh industrial environments, offering adjustable stroke control (0°–90°).

ZRG Series worm gear operators feature compact, rugged cast iron housings with epoxy primer coatings for corrosion resistance. They use high-performance axial bearings for low-friction, smooth operation. The series offers 24 different models, with torque output from 250 Nm up to 100,000 Nm. Adjustable stroke (±5° accuracy) ensures precise control. Enclosure protection is IP65 or IP67, and manual operation is supported with durable powder-coated handwheels and high-performance grease lubrication for long service life.

The ZRG Series offers several optional features for customization, including locking arrangements for secure valve positioning, housing options in ductile iron, carbon steel, or stainless steel, and AI-bronze worm wheels for enhanced wear resistance. Stainless steel shafts, fasteners, and handwheels are also available for improved corrosion resistance. These options make the ZRG Series suitable for highly demanding industrial applications that require tailored solutions and extra protection in corrosive or extreme environments.

Designed for rugged industrial use, the ZRG Series features a cast iron body and alloy steel input shafts for high durability. Epoxy primer coating protects against corrosion, while high-performance axial bearings provide smooth, low-friction operation over long service life. Greased with NLGI-2 high-performance grease, these worm gear operators require minimal maintenance. Adjustable stroke (0°–90°, ±5°) allows precise valve positioning. IP65 or IP67 enclosures ensure reliable operation even in harsh, dusty, or wet environments.

The ZRG Series is ideal for industrial valve operation where reliability, durability, and torque performance are critical. With torque outputs up to 100,000 Nm, it handles heavy-duty valves like butterfly, ball, and plug valves. Its compact design suits limited spaces, and corrosion-resistant materials enable long life in challenging environments. Manual operation with powder-coated handwheels ensures ease of use. Optional stainless steel components and robust enclosure ratings (IP65/IP67) enhance performance in extreme conditions.
