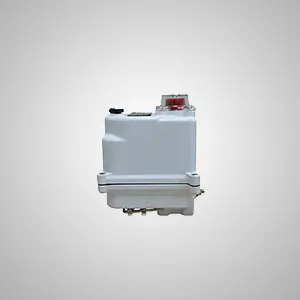

ZREQT Series

The ZREQT Series by Zeetork is a compact, high-performance electric actuator designed for precise quarter-turn valve automation. With torque ranging from 30 to 6000 Nm, it is suitable for butterfly, ball, and plug valves. Built from robust aluminum alloy, ZREQT actuators offer reliable performance in both on/off and modulating control applications. Featuring IP67 ingress protection, various voltage options (AC/DC), and easy manual override, these actuators are ideal for industrial automation in tight or enclosed spaces.

The ZREQT Series operates in ambient temperatures from –25°C to +60°C and up to 90% relative humidity at 25°C. It supports AC110V, AC220V (standard), DC24V, and optional AC380V. With IP67 protection (IP68 optional), the actuator is resistant to dust and moisture, and includes an internal heater for moisture management. Manual operation is available via a wrench or optional handwheel. The actuator integrates dual CAM stroke calibration and supports various input/output control signals for flexible automation.

ZREQT actuators deliver safe, reliable performance with built-in motor thermal protection and optional over-torque protection. Their compact design suits narrow-space and enclosed installations, while highly visible position indicators simplify monitoring. Plug-in terminals enable easy field wiring, reducing installation time. IP67 ingress protection and a moisture-resistant internal heater extend component life. With torque up to 6000 Nm, precise modulation (4–20mA, 0–10V, etc.), and manual override options, they’re perfect for critical industrial valve control applications.

ZREQT Series actuators offer precise control for on/off and modulating applications. Dual CAM stroke calibration allows accurate limit setting of travel range. Input signals include 4–20mA (standard), 0–10V, or 2–10V, while outputs mirror these ranges for feedback. Thermal-protected Class F motors ensure reliable operation, and optional over-torque protection prevents mechanical damage. Direct ISO 5211 mounting simplifies integration, while highly visible position indicators offer real-time feedback, making it easy to monitor actuator status.

Designed for industrial environments, ZREQT actuators provide IP67 ingress protection, making them dust- and water-resistant. The compact aluminum alloy build fits narrow spaces and enclosed installations. They support wide torque ranges (30–6000 Nm) and both on/off and modulating control modes. With easy field wiring, thermal motor protection, and optional over-torque safety, they deliver dependable performance. The actuator works across –25°C to +60°C, integrates manual overrides, and offers highly visible position indicators for seamless industrial automation.
